Vehicle Fitment:
Direct fit for 2003–2007 Ford trucks equipped with the 6.0L Powerstroke
For Ford Powerstroke F250 F350 6.0L Turbo Diesel 03-07
For Ford Excursion 6.0L 2003 2004 2005
For Ford F-250 Super Duty 6.0L 2003 2004
For Ford F-350 Super Duty 6.0L 2003 2004
For Ford F-450 Super Duty 6.0L 2003 2004
For Ford F-550 Super Duty 6.0L 2003 2004
Click here to view all compatible vehicles
Package Include:

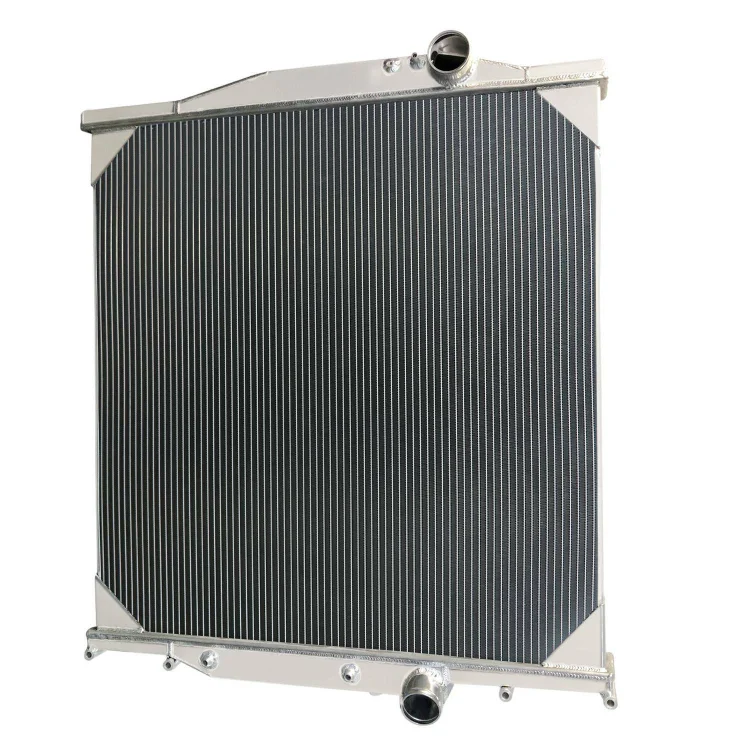

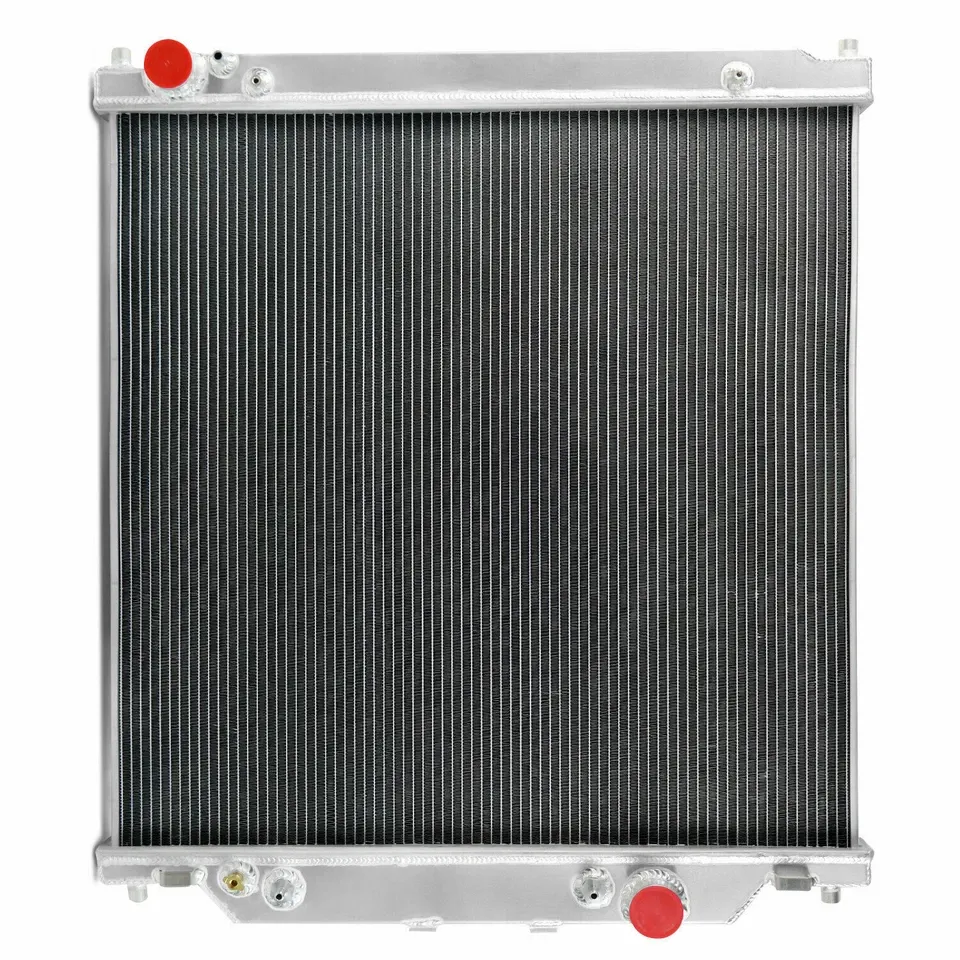

1 X 3-Row AA5052 Aluminum Radiator
Radiator Size:
Condition:New
High Performance Racing Spec.
3-Row of tubes Core Racing Design
Petcock Drain:OEM style brass petcock drain
Overall Size:30.2" x 34.5"
Core Size:29.06" x 28.54"
Inlet:1.77"
Outlet:2"
Core Thickness:1.75"
Tank Wall Thickness:0.08"
Drain Plug Thread Size:M12 x 1.5
Transmission Oil Cooler: φ32*305*M18*1.5(P)
This AA5052 Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its lightweight and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area and enables the heat to dissipate more efficiently. This AA5052 Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Made from Aircraft AA5052 grade aluminum for a prolonged lifespan and with a raw aluminum finish.
2. Brazed core technology to guarantee optimum performance and dependability.
3. All AA5052 Aluminum 2mm thick tanks and fittings, Ensure it's hard and durable.
4. Billet Aluminum CNC machined fill neck is rugged and durable.
5. Ergonomic design CNC machined cap with Engraved craftsmanship, anodized treatment.
